Hexapod Controller Board (Pico)

Simplify your Hexapod’s wiring with this customized controller board, designed for seamless integration and hassle-free connections.

Due to the limitation of the antenna performance of Pico board, the control range of this board is not as good as the ESP32 version

Key Features:

• Ready-to-Use Setup: No additional configuration needed—voltage settings are pre-adjusted for optimal performance.
• Includes Essential Components: Comes with the controller board and two pre-set LM2596 modules.
• RPi Pico Compatibility: Designed to work with the Raspberry Pi Pico W or 2W board (not included).

This board ensures a clean and efficient wiring solution, making your Hexapod project easier to assemble and operate.

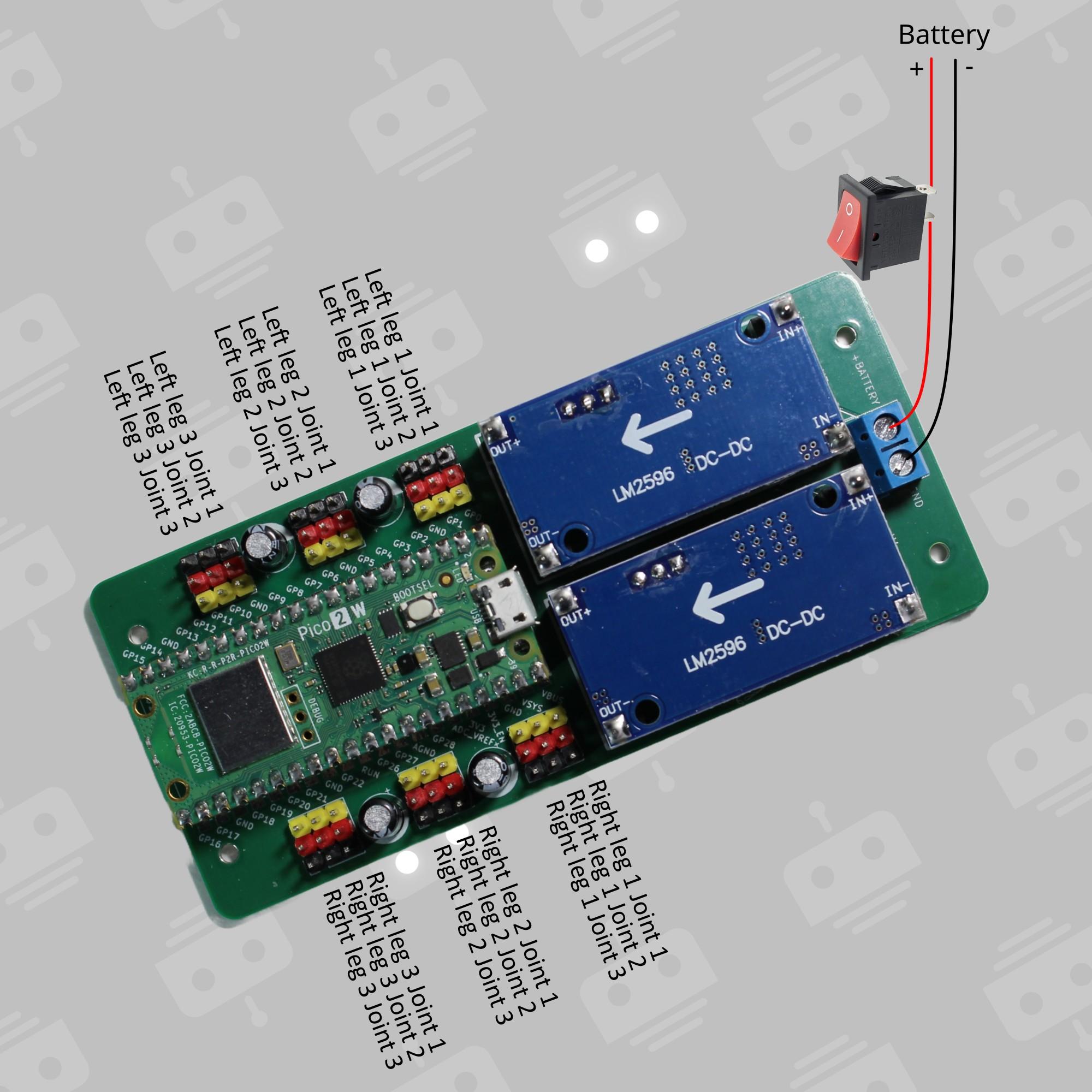

Connection Diagram:

Software:

Use the Arduino source code on the GitHub repo, under ./software/hexapod_pico folder.
